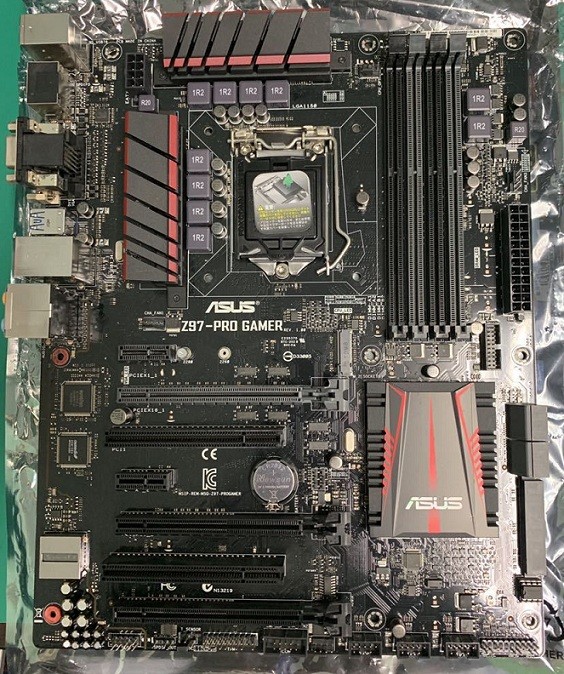

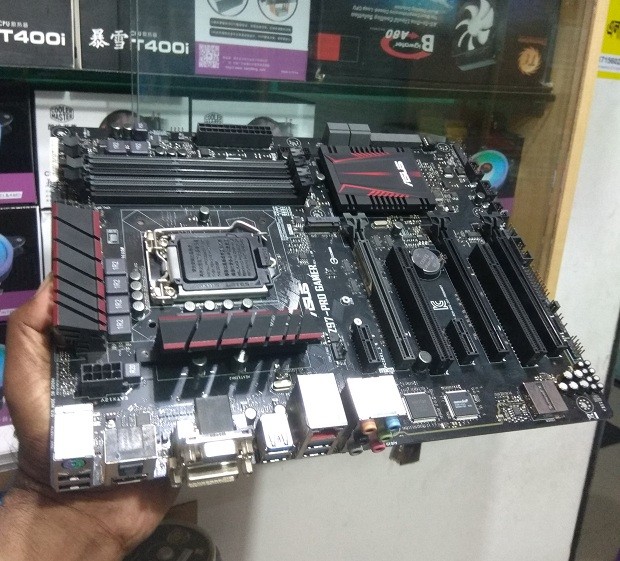

ASUS Z97-PRO GAMER LGA 1150 ATX Intel Motherboard

ASUS Z97-PRO GAMER LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Learn more about the ASUS Z97-PRO GAMER

Inaccurate specs? Let us know

Feedback

Model

Brand ASUS

Model Z97-PRO GAMER

Supported CPU

CPU Socket Type LGA 1150

CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150)

Supported CPU Technologies Turbo Boost Technology 2.0

Chipsets

Chipset Intel Z97

Onboard Video

Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support

Multi-VGA output support: HDMI/DVI-D/RGB ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 512MB

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Supports up to 3 displays simultaneously

Memory

Number of Memory Slots 4x240pin

Memory Standard DDR3 3200(O.C.)/ 3100(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2500(O.C.)/ 2400(O.C.)/ 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333

Maximum Memory Supported 32GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)

PCI Express 2.0 x16 1 x PCIe 2.0 x16 (max at x4 mode, black)

PCI Express x1 2 x PCI Express x1

PCI Slots 1 x PCI Slot

Storage Devices

SATA 6Gb/s 4 x SATA 6Gb/s port(s), gray

SATA Express 1 x SATA Express port, compatible with 2 x SATA 6.0Gb/s ports

M.2 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode) *1

*1: M.2 Socket 3 shares bandwidth with PCIEX1_1 and PCIEX1_2 (in PCIE mode) & SATA6G_4 (in SATA mode), and supports M Key and type 2260/2280 storage devices.

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset SupremeFX High Definition Audio CODEC

Audio Channels 8 Channels

Onboard LAN

LAN Chipset Intel I218V

Max LAN Speed 1Gbps

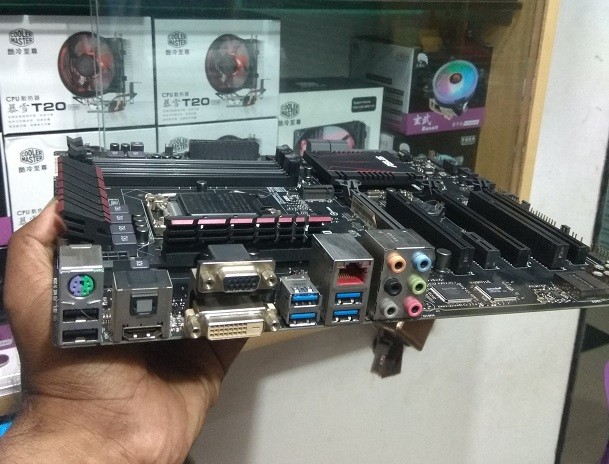

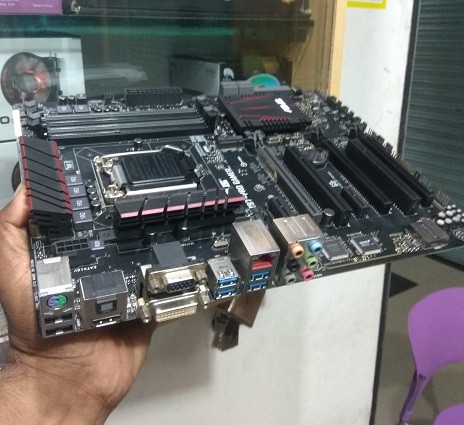

Rear Panel Ports

Back I/O Ports 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0

PS/2 1 x PS/2 keyboard/mouse port

Video Ports 1 x DVI-D

1 x D-Sub

HDMI 1 x HDMI

RJ45 1 x LAN (RJ45) port(s)

USB 3.0 4 x USB 3.0 (blue)

USB 1.1/2.0 2 x USB 2.0

S/PDIF Out 1 x Optical

Audio Ports 6 Ports
